Vision NV Pedestal - 11 Tooth Sprocket - Tapered Shaft

(No reviews yet)

Bring everything to one location with Edson's Vision MH Pedestal #490-NV-211T! The console has an allowed space of 15" by 10.25", and features a lower horizontal angled console. The Vision NV Pedestal has a base footprint of 10.5" x 14" (26.7cm x 35.6cm).

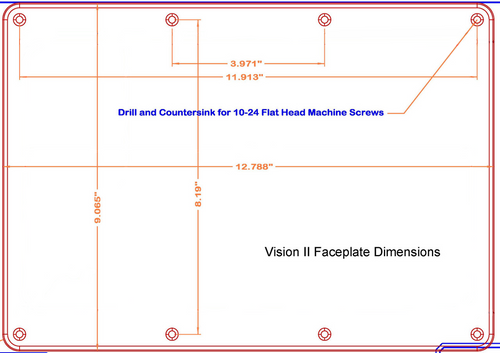

Edson's Vision MA Pedestal #490-NV-211T comes complete with:

  • Tapered 1" wheel shaft with 1/4" key for wheels with Tapered hubs
  • Console Housing fits most 12" Diagonal Screens
  • 11 tooth Chain sprocket for size for 5/8" chain links
  • Thru-shaft brake
  • Side-mount single lever engine control
  • Integrated guard pipe

Please note that if you are updating your pedestal from a Classis series to a Vision series, you will need a new idler such as this one (please make sure and match your new idler's sheave diameter to existing or larger) that places the steering cables forward and allows the engine and electronics cables to clear the steering chain and wire.

Shown with optional wheel. Radar/chart plotter not included.
