Hardware Kit for Drop Leaf Table - Guard Mount with 9.5" Guard Spacing

SKU:
785-737-95
Availability:
Orders typically ship within 2-3 business days.
$518.00
(No reviews yet)
Current Stock:

Expected release date is November 15th

Edson’s “Hardware Only” Kits are for the handyman who wishes to design and build his own cockpit table or accessories based on Edson’s tried and true designs. All kits are complete with instructions and stainless hardware.

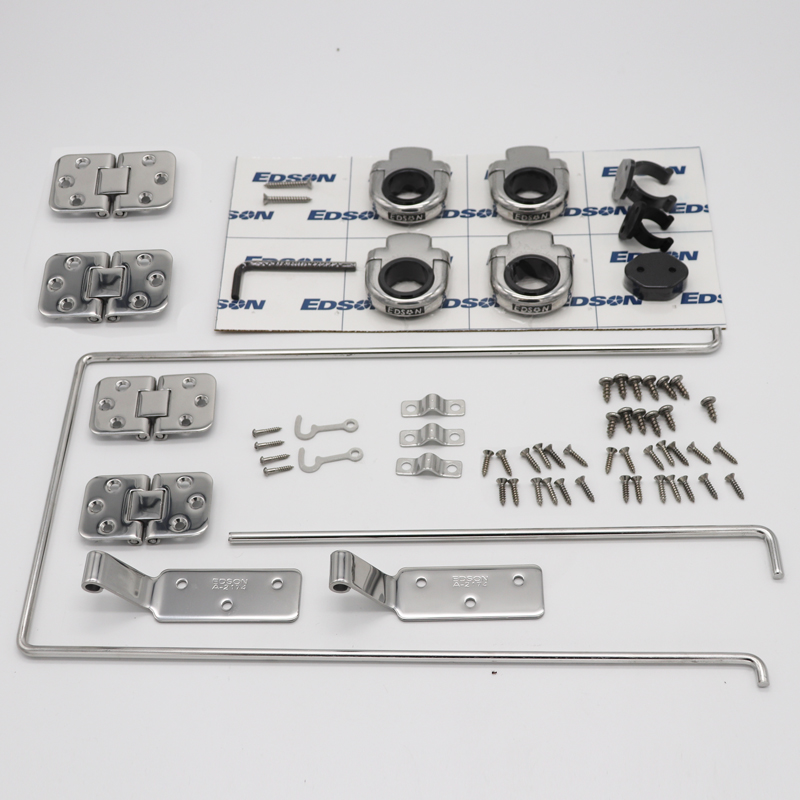

Includes 4 stainless table hinges not shown in photo. Clamps are built to accommodate 1", 1-1/8", and 1-1/4" guard pipe diameters.

Hardware Kit for Drop Leaf Table Comes With:

  • #960-A-1259 | Wire Form for Table (QTY 1)
  • #960-A-1309LG | Table Hinge Pin 11-1/2" Long (QTY 1)
  • #960-A-1340 | Table Hook & Eye (QTY 2)
  • #960-A-2097 | Table Leaf Hinge (QTY 4)
  • #960-A-2174 | Hinge Strap (QTY 2)
  • #960-A-678 | Table Wire Clip (QTY 3)
  • #960-A-2157 | 1/2" Black Spacer for Table Clip (QTY 1)
  • #A-871-A | Table Clamp for 1" Pipe (QTY 1)
  • #A-871-B | Table Clamp for 1-1/4" Pipe (QTY 1)
  • #860-100-125 | Clamp-On Table Mount (QTY 4)
  • #F10-1/2-PHP-ST | #10 x 1/2 SS Self Tapping (QTY 12)
  • #F6-5/8-FHP-WS | #6 x 5/8 Flat Head Wood Screw (QTY 26)
  • #F4-5/8-RH-WOOD | #4 x 5/8 Round Head Wood Screw (QTY 4)
  • #KIT-3/16-ALLEN | Allen Wrench (QTY 1)



download-pdf-sm.png EB411 - Table Installation to Pedestal Guard - Manual

download-pdf-sm.png EB449 - Table Installation to Console - Manual
